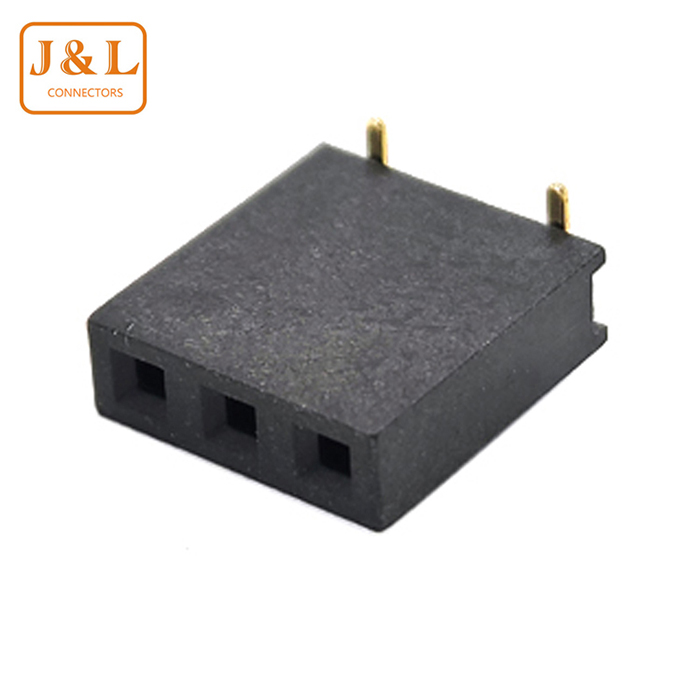

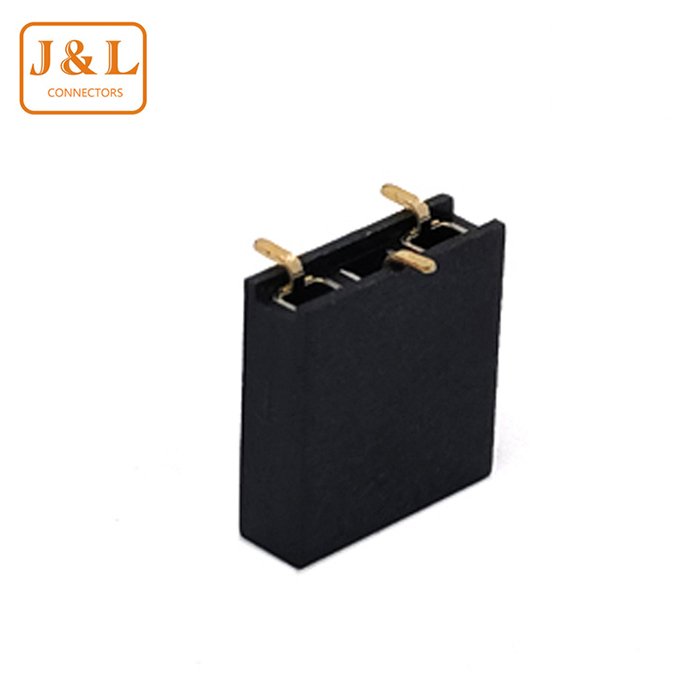

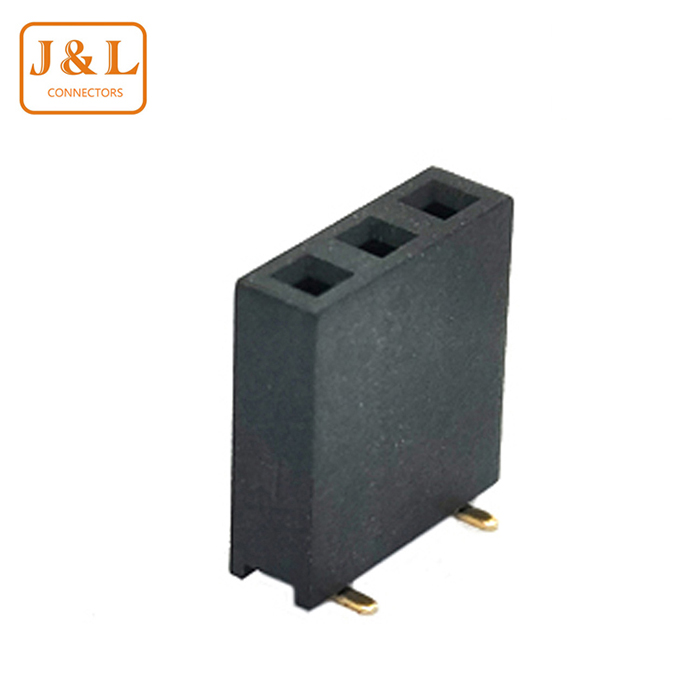

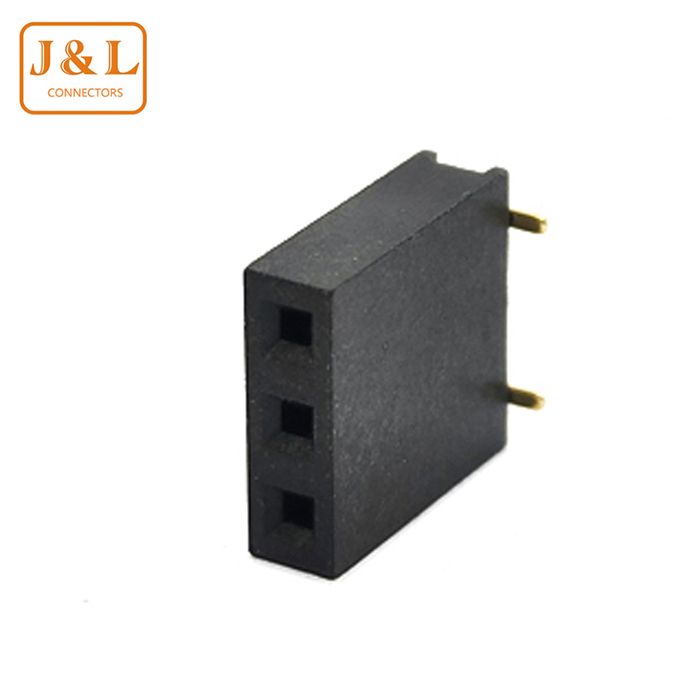

2.0mm Pitch 1*3P Single Dual Row SMT 90° Dislocated Gold-Plated Female Socket

Consulting price

Parameter introduction:

1. Current: 3A

2. Voltage: 500V

3. Contact Resistance: 20 mΩ Max

4. Insulation Resistance: 1,000 MΩ Min

5. Operating Temperature: -40℃± 105℃


Material Quality:

1. Contact Material: Copper

2. Electroplating Method: Gold-Plated , Tin-Plated

3. Insulation Material: UL94V-0, PBT, PA6T, PA9T, and LCP

All products meet ROHS 2.0 ,Reach , UL Certification.

Product introduction

13 years experience connector manufacturer, includes board to board connectors, wire to board connectors, wire harness, finished wire and cables, plastic and hardware mold production.


We can provide 0.80mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 4.20mm pitch male and female header connector products, which have customized more than 200,000 special connector products for domestic and foreign customers.


Our company has a strong research and development strength, 13 years of mold engineering research and development department, welcome new and old customers to consult--- DongGuan J&L Electronic technology Co.,LTD
